5 Axis Laser Welding Machines for Precision High Speed Manufacturing

Introduction to 5-Axis Laser Welding

5-axis laser welding is an advanced manufacturing process that uses a laser beam controlled along five different axes to join materials. Unlike traditional welding, this technology allows for precise, multi-directional welding in complex 3D shapes without repositioning the workpiece. This capability is vital in today’s manufacturing world where precision and flexibility are key.

Why does 5-axis laser welding matter for modern manufacturing? It enables manufacturers to work with high-strength materials like automotive hot forming steels and lightweight aerospace alloys with unmatched accuracy. This means stronger joints, less material waste, and faster turnaround times — all crucial factors for industries pushing the limits of design and performance.

As industries adopt CNC laser welding systems and fiber laser welding technology, the need for multi-axis welding automation grows. The 5-axis laser welding machine stands out by providing the precision laser welding required for today’s demanding manufacturing jobs, ensuring quality and efficiency at every step.

How 5-Axis Laser Welding Works

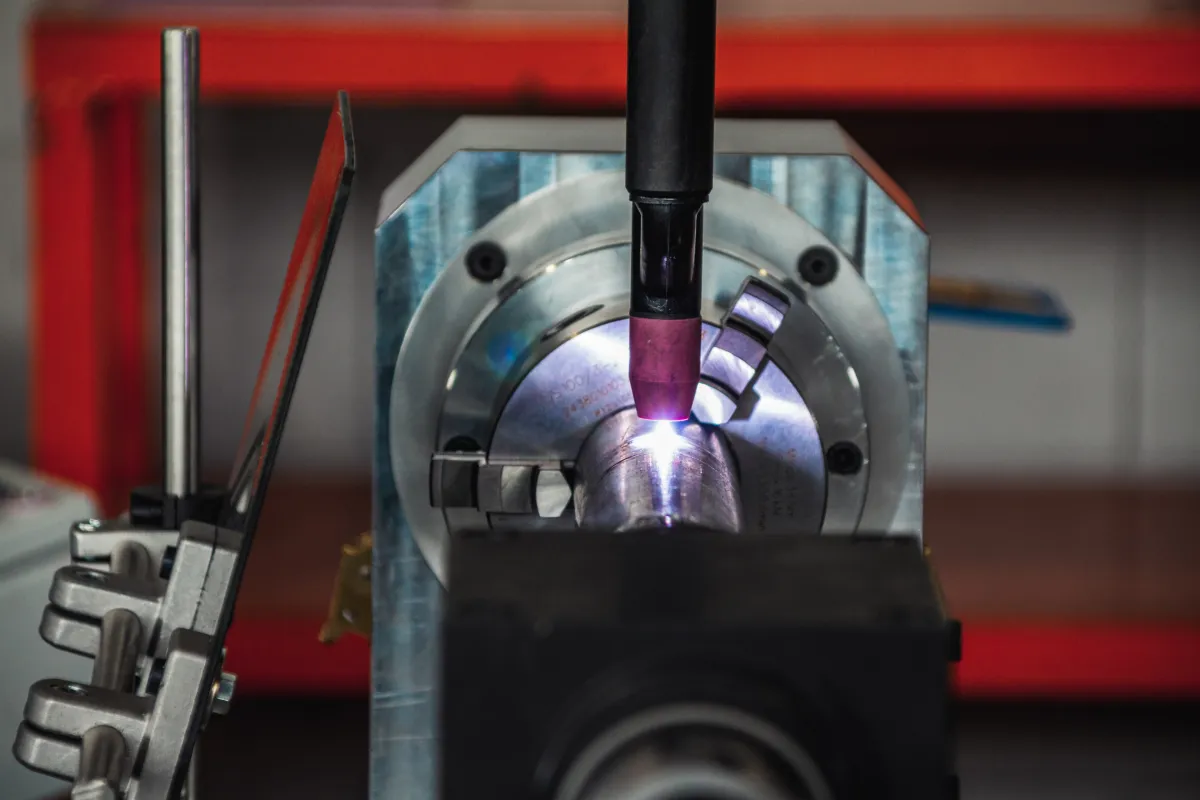

Technical Overview

5-axis laser welding is all about precision and flexibility. Unlike traditional laser welding that moves in just two or three directions, a 5-axis laser welding machine maneuvers the laser head across five different axes. This lets it reach complex angles and tight spots easily, making it perfect for detailed welding on tricky parts. The added axes mean the laser beam can maintain the right angle to the surface at all times, which improves weld quality and consistency.

Key Components of a 5-Axis Laser Welding Machine

Here’s what makes these machines tick:

• Laser Source: Often a fiber laser delivering high power with great beam quality, ideal for precision laser welding.
• 5-Axis CNC System: Controls the laser’s movement on five axes, allowing intricate and multi-directional welds.
• Rotary and Tilt Units: These physical components support the rotation and tilting needed to reach complex weld positions.
• Vision System: High-resolution cameras or sensors guide the laser for accuracy, especially when working on uneven or complex surfaces.
• Cooling System: Keeps the laser and moving parts at optimal temperatures for consistent performance.
• User Interface and Software: Intuitive controls and CNC programming allow operators to set up and run automated welding tasks efficiently.

Process Advantages

This approach offers several major benefits:

• Greater Precision: Maintains exact laser alignment on complex shapes for superior weld quality.
• Reduced Setup Time: Less need to reposition parts or weld multiple times from different angles.
• Improved Weld Strength and Appearance: Consistent energy delivery means stronger, cleaner joints.
• Flexibility: Easily adapts to a wide range of materials, including high-strength steel commonly used in automotive hot forming welding.
• Increased Productivity: Automation and multi-axis control speed up production without sacrificing quality.

By combining multi-axis welding automation with fiber laser welding technology, 5-axis laser welding machines give manufacturers a powerful tool to handle demanding projects efficiently.

Applications of 5-Axis Laser Welding

5-axis laser welding is making waves across several industries in the U.S. because it offers precision and flexibility that older welding methods just can’t match.

Automotive Industry

In automotive manufacturing, 5-axis laser welding plays a big role in automotive hot forming welding and high-strength steel welding. It helps produce lighter, stronger car parts with tight tolerances, improving safety and fuel efficiency. The ability to weld complex shapes in one go speeds up production and cuts costs.

Aerospace Manufacturing

Aerospace laser welding relies on 5-axis technology for joining critical components with precision. Whether it’s jet engines or structural parts, this method ensures strong, reliable welds on tough materials, including lightweight alloys, that are hard to reach with traditional tools. It keeps planes safe while meeting strict quality standards.

Medical Device Production

In medical device production, this technology supports creating small, complex parts with exacting detail. 3D laser welding technology allows for precision laser welding on delicate instruments and implants, improving their performance and longevity. It’s key for industries demanding ultra-clean, high-quality welds.

Other Industries

Beyond these, 5-axis laser welding machines find use in electronics, defense, and energy sectors. Fiber laser welding and CNC laser welding systems adapt well to diverse materials and geometries, offering solutions for everything from industrial laser welding solutions to multi-axis welding automation in cutting-edge manufacturing.

By integrating 5-axis laser welding, U.S. manufacturers can boost productivity and quality across the board.

Benefits of Choosing TechCNC’s 5-Axis Laser Welding Machines

When you opt for TechCNC’s 5-axis laser welding machines, you’re investing in precision laser welding that meets the highest standards. These machines offer unmatched accuracy thanks to advanced 3D laser welding technology and fiber laser welding sources, making even complex multi-axis welding automation tasks smooth and reliable.

High Efficiency and Cost Savings

TechCNC’s systems are designed to boost productivity while lowering costs. Faster welding times and reduced material waste mean your projects stay on budget. Plus, the machines are built for high-strength steel welding and tough materials like those used in automotive hot forming welding, cutting down on rework and downtime.

Versatility and Scalability

Whether you work in aerospace, medical device production, or general industrial applications, these machines adapt easily. The ability to handle different materials and sizes supports growth, letting you scale production without needing new equipment.

Automation and Ease of Use

Our 5-axis laser welding machines come with user-friendly controls and integrated automation options. This reduces operator fatigue and error, speeding up training and increasing throughput. The CNC laser welding systems are ready to integrate into your existing workflows seamlessly.

Local Support and Training

TechCNC is proud to offer dedicated support and hands-on training right here in the United States. Our team ensures you get the most from your investment, providing fast service and expert guidance whenever you need it.

In short, choosing TechCNC means precision, efficiency, versatility, and confident local support for your industrial laser welding solutions.

Why TechCNC Stands Out

When it comes to 5-axis laser welding machines, TechCNC offers clear advantages that make them a top choice in the U.S. market.

Innovative Technology

TechCNC integrates the latest fiber laser welding and multi-axis automation technologies into their machines. This ensures precision laser welding and reliable 3D laser welding technology for even the most complex jobs. Their continuous R&D keeps you ahead in automotive hot forming welding, aerospace laser welding, and other advanced applications.

Competitive Pricing

TechCNC delivers high-quality CNC laser welding systems without the premium price tag. Their competitive pricing structure helps businesses of all sizes afford state-of-the-art technology, improving ROI while keeping production budgets in check.

Industry Expertise

With years of experience working in industrial laser welding solutions, especially in sectors like automotive and medical device production, TechCNC understands the specific needs of U.S. manufacturers. This expertise means better support and solutions tailored to your production challenges.

Customization Options

Every manufacturing process is unique, so TechCNC offers flexible customization to match your exact welding requirements. Whether you need adjustments for high-strength steel welding or specific automation features, their team works with you to tailor the 5-axis laser welding machine accordingly.

Choosing TechCNC means investing in a trusted partner that blends innovation, affordability, and knowledge to boost your manufacturing efficiency.

For more about their fiber laser welding capabilities, check out TechCNC’s fiber laser welder.

How to Choose the Right 5-Axis Laser Welding Machine

Choosing the right 5-axis laser welding machine starts with a clear look at your production needs. Are you handling complex parts that need precision laser welding? Or maybe you need a machine that handles high-strength steel welding for the automotive or aerospace sectors? Understanding your workflow, material types, and part sizes will help narrow down your options.

Next, focus on key features to look for:

• Multi-axis welding automation for flexibility and speed
• Fiber laser welding technology for consistent quality
• Compatibility with your existing CNC laser welding systems
• User-friendly controls for easy setup and operation

Budget also plays a big role here. Don’t just think upfront cost—consider long-term ROI, including energy savings, maintenance, and uptime. A machine with higher efficiency can pay for itself faster.

Finally, partner with a trusted supplier who offers strong local support and training. In the US market, quick service and expert guidance make a huge difference in keeping your production line running smoothly and achieving the full benefits of your 5-axis laser welding machine.

Future Trends in 5-Axis Laser Welding

The future of 5-axis laser welding is shaping up to be exciting, especially for manufacturers in the U.S. looking to stay ahead.

Integration with Industry 4.0

Smart factories are becoming the norm, and 5-axis laser welding machines are joining in. These machines are increasingly connected to digital networks, enabling real-time monitoring, predictive maintenance, and seamless data sharing. This integration helps reduce downtime and boosts overall production efficiency.

Advancements in Lightweight Materials

As industries like automotive and aerospace push for lighter, stronger parts, 5-axis laser welding adapts to handle new materials such as high-strength steel and advanced alloys. These materials require precise control, which 3D laser welding technology delivers, making it easier to meet stricter fuel efficiency and performance standards.

Increased Automation

Automation continues to rise with multi-axis welding automation systems becoming more common. This means less manual intervention, higher repeatability, and better quality control. For U.S. manufacturers, this translates to lower labor costs and faster production times without sacrificing precision.

Staying updated on these trends ensures your 5-axis laser welding setup remains modern, competitive, and efficient. For more on fiber laser welding technology and CNC laser welding systems, check out our fiber laser cutting machine options that complement advanced welding setups.
